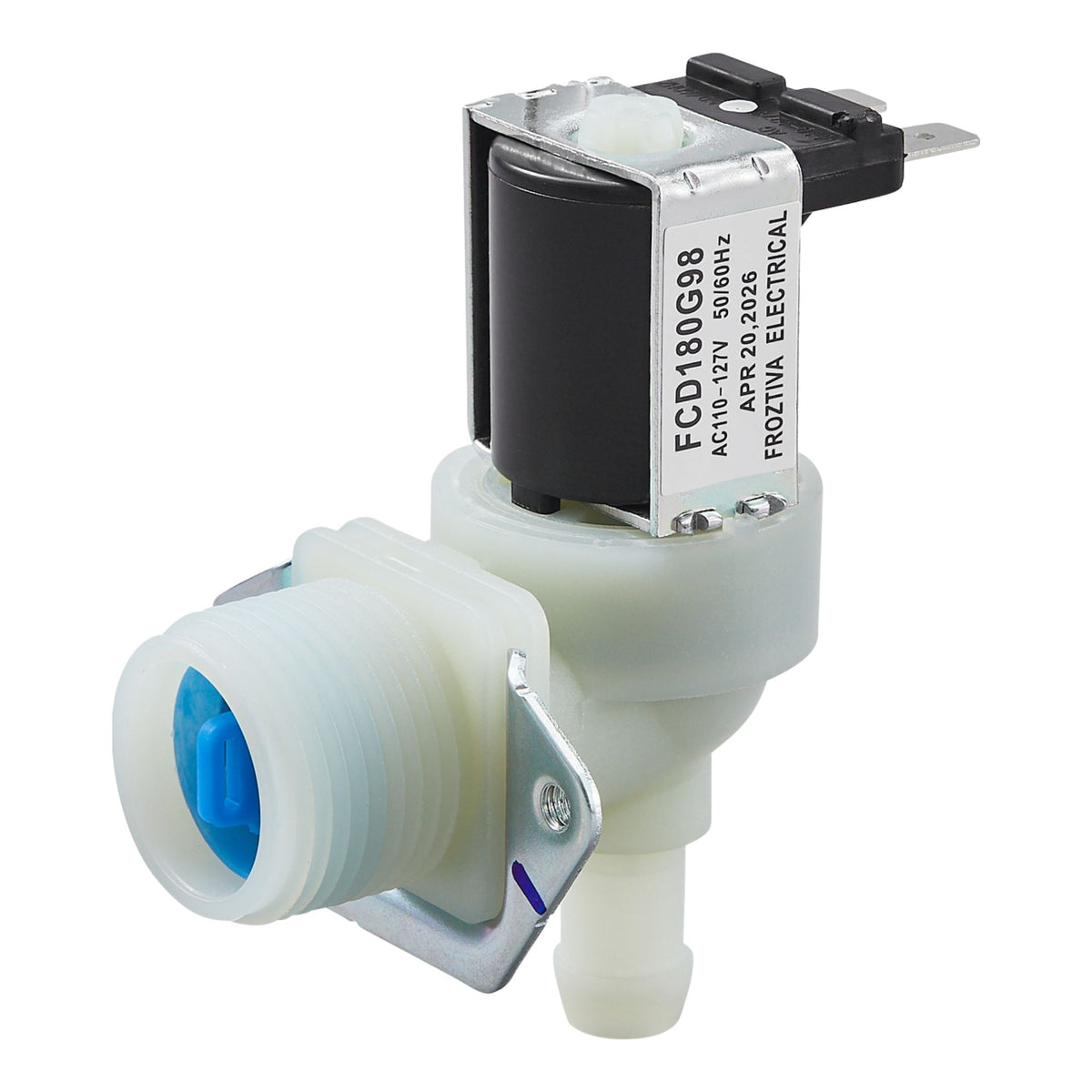

Use this guide to identify symptoms, compare the FCD180G reference family with the exact FCD180G98 model, and verify the FROZTIVA FCD180G-001-FZ replacement before ordering.
Symptoms
- The ice maker fills slowly or does not fill after the water supply has been confirmed.
- Water continues to enter when the machine is not calling for water.
- Water is visible around the valve body or its inlet/outlet connections.
- The machine still does not make ice after basic water-supply checks.
These symptoms can also be caused by the water supply, wiring, controller, tubing or another component. Diagnose the system before replacing the valve.
Compatibility
- Reference family
- FCD180G
- Exact reference model
- FCD180G98
- FROZTIVA SKU / internal model
- FCD180G-001-FZ
Fitment reminder: Similar-looking parts may not be interchangeable. Always compare the machine model, existing part number, dimensions, electrical specifications, mounting points, and connections before ordering.
Dimensions & specifications
- Voltage
- 110–127V AC
- Frequency
- 50/60Hz
- Inlet connection
- 26.2 ± 0.2 mm
- Outlet connection
- 12 ± 0.1 mm
- Flow reference
- 4 L/min
Compare the printed model, connector layout, mounting position and every listed specification with the original valve. Do not rely on appearance alone.
Before You Order
- Photograph the machine data plate and copy the complete model and serial number.
- Confirm the original valve is marked FCD180G98 or belongs to the documented FCD180G reference family.
- Compare voltage, frequency, inlet/outlet connections, terminals, mounting points and valve layout.
- If any detail differs or is unreadable, contact FROZTIVA before ordering.
Installation
- Disconnect electrical power, shut off the water supply and relieve water pressure.
- Photograph and label the original wiring, tubing and mounting orientation before removal.
- Compare the replacement and original valve side by side before connecting anything.
- Install without forcing terminals or tubing, restore water first and inspect every connection for leaks.
- Restore power and test a complete fill cycle while monitoring for leaks or abnormal operation.
Installation should be completed by a qualified service professional when required by the equipment manufacturer or local electrical/plumbing rules.
Troubleshooting
No water or slow fill
Confirm the supply valve is open, tubing is not kinked, screens are not obstructed and the machine is sending the correct control signal.
Continuous filling or overflow
Shut off the water supply. Check for debris, incorrect flow direction, wiring/control faults and whether the valve closes when de-energized.
Leaking after installation
Disconnect power and water. Inspect tubing insertion, seals, fittings, connection alignment and cracks. Do not operate the machine while a leak remains.
Machine still not working
The valve may not be the root cause. Record the symptoms and completed checks, then contact support before replacing additional parts.
FAQ
Are FCD180G and FCD180G98 separate FROZTIVA products?
No. In this guide, FCD180G is the reference family and FCD180G98 is the exact reference model for the same FROZTIVA FCD180G-001-FZ knowledge entity.
Is a similar-looking inlet valve automatically compatible?
No. Verify model markings, electrical ratings, connection sizes, mounting points and valve layout.
What should I send if fitment is uncertain?
Send the machine data plate, original valve markings, photos from multiple angles, connection measurements and your machine symptoms.
Contact Support
For compatibility or troubleshooting help, include the machine model and serial number, original-part photos, measurements and the checks already completed.
